Comen - BQ80

BQ80

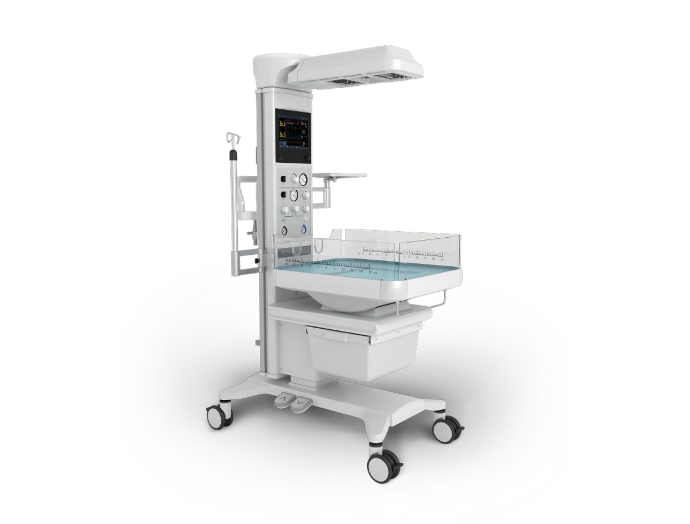

Infant Radiant Warmer
Comen
New Comprehensive Neonatal Nursing Platform
This is by far the most powerful 4 in1 neonatal nursing platform. The BQ80 integrates four key rescue and nursing systems to achieve one-stop operation and management. At the same time, it scientifically optimizes the workflow, helps medical staff to easily respond to urgent medical needs, effectively saves the valuable rescue time, and provides comprehensive and meticulous care for newborns.

Inquire Now

Warm and Caring


Far infrared ceramic heating tube
  • Utilize Elstein far infrared ceramic heating tube, which greatly improve the radition efficiency and extend the duration.
  • Perfect to absorded by skin and effectively accelerate blood circulation, by which the visceral temperature and body surface temperature rise simultaneously in short time.
  • Double heating tube design accelerate the heating rate and ideally distribute the heat on the surface even the mattress is tilted, which provides warm and comfortable for neonatal.
  • Apply high-accurate double thermistor temperature sensor and increase its accuracy of temperature monitoring.
Thermal conduction gel mattress
  • Environmental silicon gel, with great biocompatibility
  • Soft and comfortable, great thermo performance
  • Anti-bacterium, easy to clean and disinfect as well as reduce bedsore
Life Resuscitation
T- Piece
Consistent with TABC standard of International Asphyxia Resuscitation Guidance. Providing safe and effective integrated asphyxia resuscitation and ventilation management including negative pressure sputum suction, positive pressure resuscitation, and oxygen therapy;
Provides safe, stable and controllable PIP and PEEP to ensure functional residual capacity (FRC) and improve lung compliance;
With air oxygen mixing function, oxygen concentration control accuracy in ± 3%.
APGAR score timer
Convenient and timely assessment of the newborn's condition.
Timely Monitoring
BQ80 integrates specialized neonatal monitoring system. It can monitor the vital signs and waveforms of newborns in real time during resuscitation without additional patient monitor, so that medical staff can evaluate and decide if the resuscitation measures are effective.
Specialized Neonatal Monitoring System

Includes specialized ExNeo neonatal ECG technology, Adap- DSP self-adaptive blood pressure processing technology, Masimo SET neonatal blood oxygen technology, patented neonatal apnea self-rescue technology, and equipped with specialized neonatal accessories that have passed the biocompatibility test;

Whether it is to ensure the accuracy of ECG, respiration, blood oxygen, blood pressure, or to treat the suffocating symptoms caused by apnea, it has obvious advantages, which provides great convenience for newborn rescue and resuscitation.



Jaundice TreatmentHigh-end LED light source
  • Natural and soft blue light;
  • Adapt CREE high-brightness LED chip and its current conversion efficiency up to 90%;
  • The effective wavelength range of light is 430-490nm;
  • The energy of light is up to 45μW/cm2/nm, with high, medium and low three-position switch for personalized Jaundice treatment.
MIX-light System

  • By multiple reflection and uniform combination of blue and white beam of light, Mixing-Light system effectively ease nurses’ discomfort while operating.
  • Application of two-lens enable blue spots to perfectly cover the whole surface of bed without light leak.
  • Display of cumulative and single illumination time period facilitate nurses to recognize the service time of bulb and operate timely.
  • Excellent performance of LED bulb with a long service time for more than 50,000 hours.
Ergonomic Design
Simplify operation, improve efficiency, and save valuable time for medical staff.
Hands-free Alarm Silence
It’s able to eliminate the alarm sound just by waving your hand in front of the sensor without touching the machine; help you maintain a clean, quiet and warm nursing environment, and effectively prevent the occurrence of hospital infection.

Self-adaptive Brightness Adjustment Touch Screen
10.4-inch color LCD touch screen;
Centralized display of all neonatal waveforms and data for easy viewing and operation;
Ambient light sensor, automatically adjusted screen brightness.
360° Visible Alarm Indicator
The alarm can be detected from every angle, whereby event can be more noticeable .


Humanized Damping Door
Built-in damping components, reduce the influence of noise to neonatal.

Electric Bed Lifting
Pedals or touch screen control, allows the medical staff to have a comfortable operating platform and could conveniently sit down during the home care.
Bed Tilting
The bed can be tilted through the touch screen, support one-button angle adjustment, can be leveled with one button when weighing, accurate and fast.
Patented Tilt Angle Display
The patented tilt angle display function is accurate and visualized by built-in angle sensor.

Rotary Lamp
Support horizontal and vertical rotation, neonatal can still be continuously heated during shooting X-rays and stays away from catching a cold or being subjected to cold stress.



Built-in X-ray Film Box
X-ray film box is placed under the crib, no need to move the neonatal during shooting X-rays, avoiding adverse stimulation and reducing the risk of infection.
LED Lamp for Puncture
Features high light intensity, including high, medium, and low three-position adjustment, enables medical staff to clearly observe the skin color of the neonatal by providing sufficient light during the treatment.
Integrated Electronic Scale
Measuring the weight of neonatal, convenient to record and observe neonate growth trends.
